Product Details
Place of Origin: China
Brand Name: GDZX
Certification: ISO9001
Model Number: ZXMD-2000
Payment & Shipping Terms
Minimum Order Quantity: 1Set
Packaging Details: packing bag
Delivery Time: 7-20 work days
Payment Terms: L/C,T/T,Western Union,MoneyGram,
Supply Ability: 1200Sets/ year
Instrument Power: |
30W |
Instrument Accuracy: |
0.2 |
Operation Mode: |
Soft Keyboard Key Input |
Printer Type: |
High-speed Thermal Printer |
Printing Method: |
English Report Printing |
Dimensions: |
320 × 240 × 180mm |
Instrument Power: |
30W |
Instrument Accuracy: |
0.2 |
Operation Mode: |
Soft Keyboard Key Input |
Printer Type: |
High-speed Thermal Printer |
Printing Method: |
English Report Printing |
Dimensions: |
320 × 240 × 180mm |
SF6 Gas Analyzer

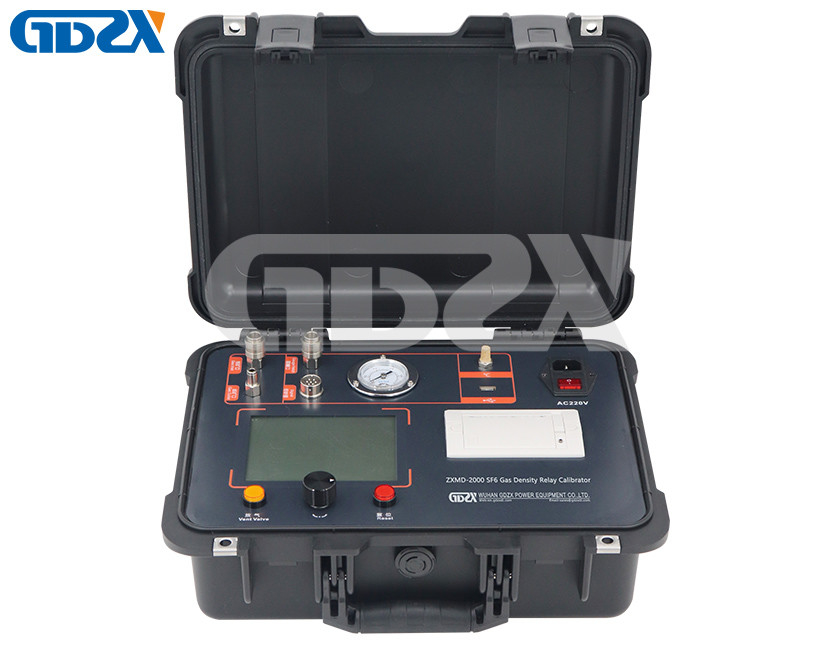

For SF6 Swith SF6 Density Relay Intelligent Calibrator
The instrument uses a high-precision pressure sensor and a high-speed A / D converter, combined with a 32-bit high-performance microprocessor to perform performance verification on various SF6 density relays, and can accurately measure the pressure value at the current temperature when the signal is activated. It can convert any ambient temperature to the standard pressure at 20 ℃, and can immediately print and store the test data for reference, and at the same time automatically identify the faults during the test. This product is easy to carry, simple to operate, high in test accuracy, strong in stability and good in reliability, reflecting the "intelligent" characteristics of the instrument.
|
Working voltage |
AC 220V ± 10% (type A) or built-in working power supply (type B) |
|
Instrument power |
30W |
|
Instrument accuracy |
0.2 |
|
Pressure display resolution |
0.001MPa |
|
Pressure calibration range |
0 ～ 1.0MPa |
|
Ambient temperature display resolution |
0.1 ℃ |
|
Ambient temperature measurement range |
-40 ℃ ～ 80 ℃ |
|
Working humidity |
≤90% RH |
|
Verification object |
Single alarm, single block, single alarm single block, single alarm double block |
|
Display mode |
320 × 240 graphic dot matrix monochrome LCD screen |
|
Operation mode |
Soft keyboard key input |
|
Printer type |
High-speed thermal printer |
|
Printing method |
English report printing |
|
Storage capacity |
Can store 32 test results at the same time |
|
Dimensions |
320 × 240 × 180mm |
|
SF6 gas density display mode |
Pressure under the tested environment, equivalent pressure at 20 ℃. |
|
Instrument weight |
(Host) 3.5kg |
