Product Details
Place of Origin: CHINA
Brand Name: GDZX
Certification: ISO9001
Model Number: ZXHL-100P
Payment & Shipping Terms
Minimum Order Quantity: 1
Packaging Details: carton
Payment Terms: L/C,T/T,Western Union,MoneyGram
Measuring Range: |
0～2999.9μ |
Total Power: |
600W |
Power: |
Electronic, 1000W |
Range: |
0~100mΩ(50A) 0~50mΩ(100A) |
Way Of Working: |
Continuous Measurement |
Accuracy: |
±(0.5%±2) |
Test Current: |
50A ,100A, 200A, 300A |
Warranty: |
1 YEAR |
Measuring Range: |
0～2999.9μ |
Total Power: |
600W |
Power: |
Electronic, 1000W |
Range: |
0~100mΩ(50A) 0~50mΩ(100A) |
Way Of Working: |
Continuous Measurement |
Accuracy: |
±(0.5%±2) |
Test Current: |
50A ,100A, 200A, 300A |
Warranty: |
1 YEAR |
DC 100A Constant High Precision Current Test Contact Resistance Meter with Printer
ZXHL-100P Contact Resistance Tester Is Designed For Measuring Contact Resistance Of Switching Control Equipment, Using High-Frequency Switching Power Supply Technology And Digital Circuit Technology. It Is High Precision And Good Stability And Can Meet Most Power Systems’ Requirements In High-Voltage Switches Maintenance And High-Voltage Switches Factory Contact Resistance Measurement.
Features
1. Continuously output high current, always get precise results
2. High stability: the last display figure is stable within ±1d error, steady reading, good reproducibility
3. High precision: adopts dual channel high-speed 16bits Σ-Δ AD sampling, max resolution up to 0.01μΩ.
4. Intelligent: auto switch range, thermal shutdown protection circuit.
5. High quality: temperature compensating circuit, good vibration resistance performance
6. Powerful: 50A or 100A for options, test time can be set during 5s-999s
7. Friendly interface: rotary knob operation, data time setting, real time save & print function
8. Several communication modes: RS232 or USB
9. Easy to use: small in volume, light in weight.
Technical Indicators
| 1. Measuring range: 0～2999.9μ 2. Resolution: 0~99.99: 0.01μΩ, 100.0~2999.9: 0.1μΩ 3. Measuring current: DC50A, 100A fixed output 4. Accuracy: ±(0.5% rd+2d) 5. Continuous working time: 5s~599s 6. Display: Large LCD 7. Communication interface: USB or RS232 serial port 8. Working power supply: AC220V±10% 50Hz 9. Total power: 600W 10. Maximum storage: 200 records 11. Working environment: Temperature -10℃～40℃ humidity≤80%RH 12. Dimension: 380×300×260mm3 13. Weight: 8KG (accessories excluded) |

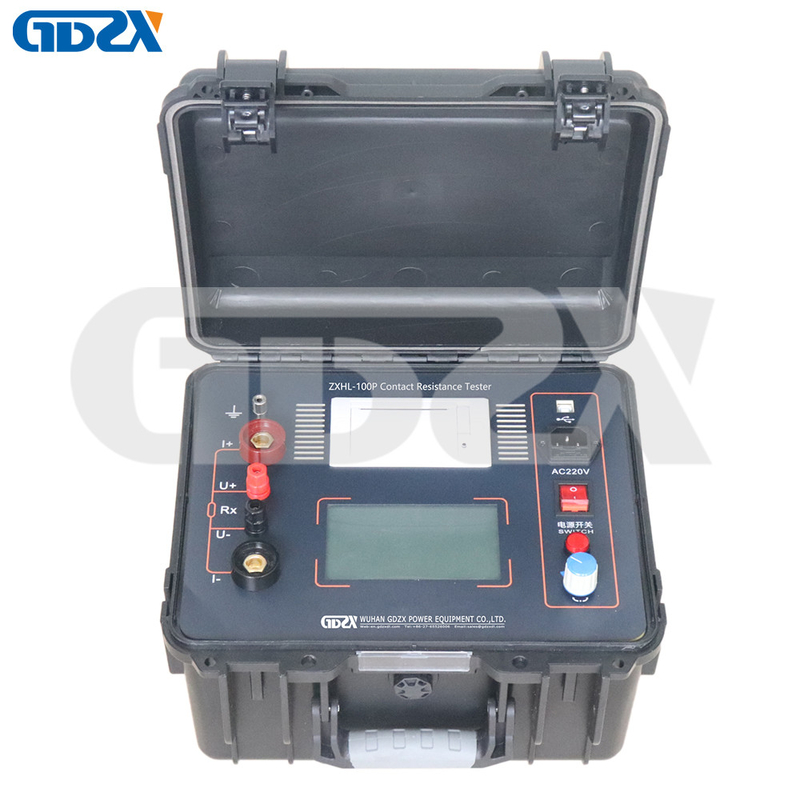

Product picture
(1)We will ship products within 5-20 working days after the receipt of confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.
(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.
(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.
(5)After shipping, we will remain attentive till goods well received.
Wuhan GDZX Power Equipment Co.,Ltd. is a manufacturer of power test equipment. Integrating design , production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.
