Wuhan GDZX Power Equipment Co., Ltd sales@gdzxdl.com 86--17396104357
Product Details
Place of Origin: CHINA
Brand Name: GDZX
Certification: ISO9001
Model Number: ZCQG-C
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: US $2789.00~4359.00/Set
Packaging Details: carton or wooden case
Delivery Time: 8-15 working days
Payment Terms: T/T, L/C
Supply Ability: 1200 sets/year
Product Name: |
Power Frequency Inductive Voltage Divider |
Rated Primary Voltage: |
200V |
Rated Secondary Voltage: |
0~200V |
Rated Load: |
0VA |
Accuracy Class: |
0.002 |
Power Supply Conditions: |
Frequency:50±0.5Hz; The Input Voltage Distortion Coefficient:<5% |
Environment: |
Temperature:20±5℃; Relative Humidity:<80%; Altitude:<1000m |
Weight: |
11Kg |
Product Name: |
Power Frequency Inductive Voltage Divider |
Rated Primary Voltage: |
200V |
Rated Secondary Voltage: |
0~200V |
Rated Load: |
0VA |
Accuracy Class: |
0.002 |
Power Supply Conditions: |
Frequency:50±0.5Hz; The Input Voltage Distortion Coefficient:<5% |
Environment: |
Temperature:20±5℃; Relative Humidity:<80%; Altitude:<1000m |
Weight: |
11Kg |

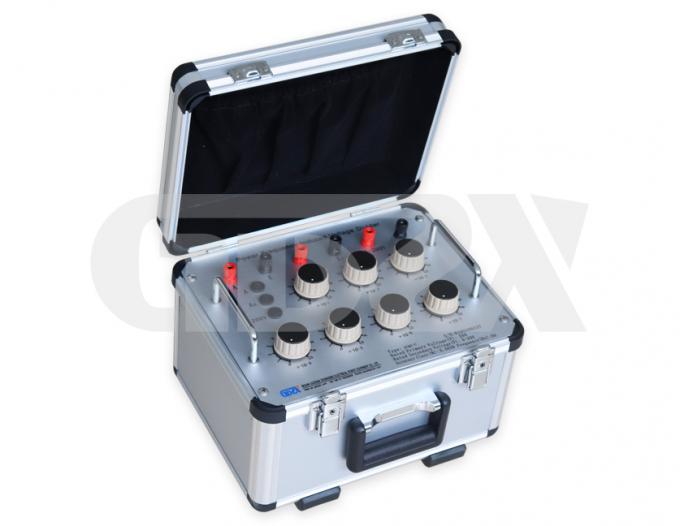

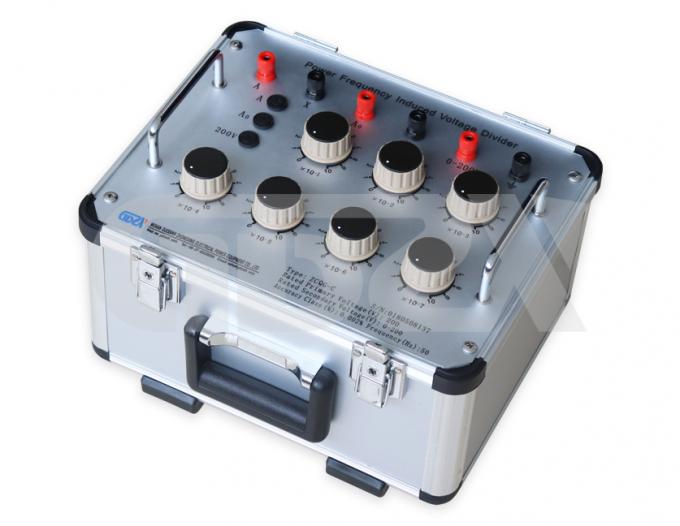

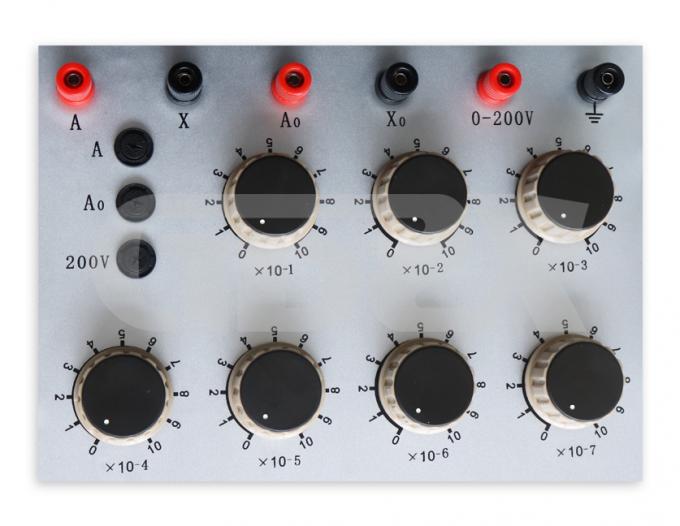

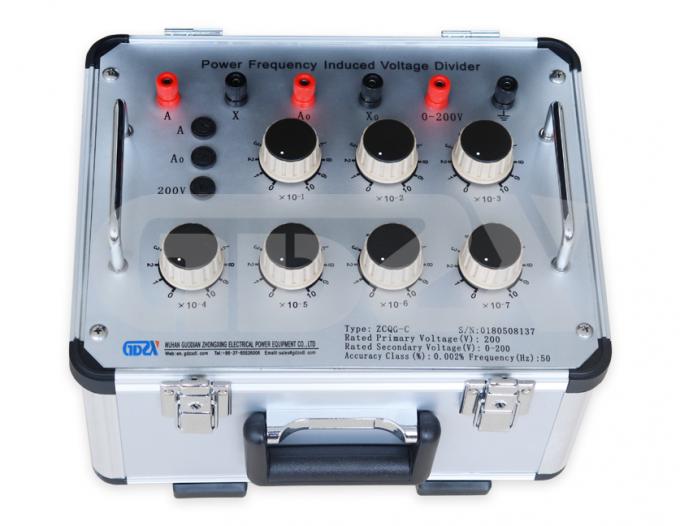

ZCQG-C Power Frequency Inductive Voltage Divider Class 0.002
Introduction
ZCQG-C power frequency induction voltage divider adopts cascade working mode of self-coupling two-stage voltage proportional device, and it can generate any voltage proportional value through switching. It has the advantages of accurate voltage ratio, stability and giving universal ratio. This equipment can be widely used in various measuring circuits and measuring devices.
Features
1. High accuracy, good linearity and high stability.
2. Lightweight and easy to use.
3. Non-standard changes, high-precision measurement.
4. Accuracy of change ratio measurement.
Technical index
| Environmental conditions | Temperature | 20 ± 5℃ |
| Relative humidity | <80% | |
| Altitude | <1000m | |
| Interference | There is no strong electromagnetic field interference source and vibration | |
| Power conditions | Frequency | 50 ± 0.5Hz |
| Input voltage distortion coefficient | <5% | |
| Performance index | Rated primary voltage | 200V (400V, 600V, 800V, 1000V) optional |
| Rated secondary voltage | 0 ~ 200V | |
| Rated load | 0VA | |
| Accuracy level | 0.002 level | |
| Weight | 11Kg |
Wuhan GDZX Power Equipment Co.,Ltd. is a manufacturer of power test equipment. Integrating design , production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.
Service
* Provide professional consulting service; dedicated salesman and professional technical engineer to answer customer questions.
* Ensure customer get the detailed information about the product in hand.
* Reasonable price, we trust our customers should get the worth what they paid. Quotation stamped and confirmed by Manager.
* Welcome customers visit.
* The contract and the technical agreement to sign by both parties.
* Being trustworthy, follow the requirements and ensure successful implementation of signed contracts and technical agreements.
* Focus on communication, actively communicate with users, take notes of user’s questions and schedule, provide the necessary technical support.
* Move quick and efficient, professional on delivery, installation, debugging, training and others.
Warranty
* We maintains 100% customer satisfaction, please give us feedback if you fell anything wrong with the product, we will make it right for you.
* Our products are guaranteed with one year warranty and life-long tech support.
* Provide solutions within 24 hours when there is problems feedback from customer.
1. How to choose the most suitable electrical testing equipment?
Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the required parameters.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 work days after received payment. If you are in urgent need, we can consider making special arrangement for you.
3. Do you accept customization service?
Yes, of course, we can not only offer standard equipments, but also customized equipments according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
4. Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick you up from airport.
5. Do you have customers of our country before?
Now our testing machines have been sold to more than 26 countries, like USA, Canada, Russia,UK, Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand and Vietnam, Iran, Brazil and so on.
6. How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and free repair, necessarily, our engineers may go to your place for better service.
7. How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing equipments abroad by sea or by air without damage.
8. What is the order process?
Inquiry - quotation - communication - order confirming - payment - packing - delivery - customer receiving - after service.
9. How to install and use the product?
The product is shipped with an operating instructions of English version.
